Quick Details

  • Type: Filling Machine
  • Condition: New
  • Application: Commodity, Food, Medical, cosmetic, toothpaste
  • Packaging Type: soft tubes
  • Packaging Material: aluminum-plastic
  • Automatic Grade: Semi-Automatic
  • Driven Type: Electric
  • Voltage: 380V/220V/50Hz
  • Power: 2.2KW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SUNWAY
  • Model Number: B.GF-J
  • Dimension(L*W*H): 1100*850*1500mm
  • Weight: 300kg
  • Certification: ISO 9001:2000
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: 25-30pcs
  • Material: ABL, PBL
  • Warranty: One Year
  • Function: Filling the paste or lotion into the tube and then sealing
  • tube type: plastic tube
  • Filling material: toothpaste, cosmetic cream paste lotion, etc

Packaging & Delivery

Packaging Details: Export wooden case
Delivery Detail: Shipped in 25 days after payment

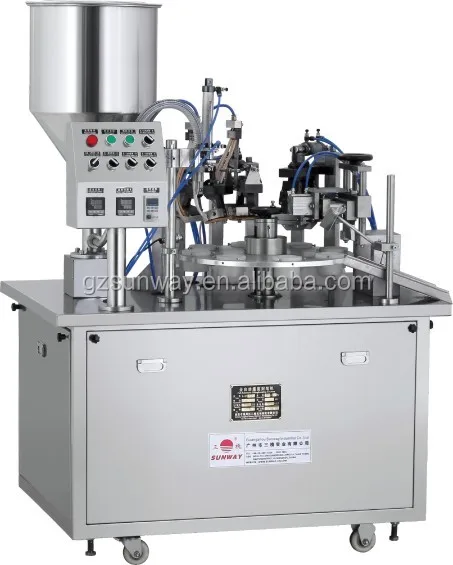

Product Description

Product Application

The  machine is widely used for filling, sealing and batch No.printing of products packaged by aluminum-plastic and full-plastic tubes in cosmetics, toothpastes, medical ointments , food, shoe polished, adhesives,etc. According to customer requirements, the machine can realize dual-ues filling of liquid and ointment materials through special design and special filling device. The machine can be used independently and can also  form an prduction flow line with other equipemtn such as the automatic packaging machine and etc.

Technical Parameters
Type
B.GF-40
Power supply
380(220)V/50Hz
Power
2.2kw
Air consumption

≤0.6m³/min

Filling volume
15-60ml     60-120ml     120-200ml
Metering precision
±3%               ±2%                   ±1%
Max. Production capacity
25-30pcs/min
Tube  size
φ16-φ50mm
Dimension(L*W*H)
1100*850*1500mm
Weight
300kg

Main Features

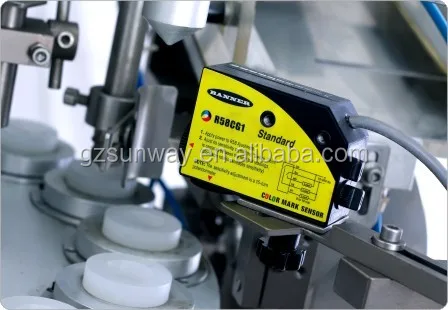

1) Manual tube feeding, automatic color sode aligning, automatic tube discharging.

2) Outer heating form, especially suitable for sealing aluminum-plastic composite tubes with strong adaptability and conveniently change of different specifications.

3) Automatically adjusted filling volume, no filling in case of no tube, PLC control, electrical buttons operation.

4) Touch screen ( optioan)

5) Wire drawing preventing or leakage preventing filling head( optional)

6) Storage barrel liquid level control and alarming system,automatic feeding (optional)

7) Provided with mixing barrel (optional)

8) Provided with heating storage barrel (optional)

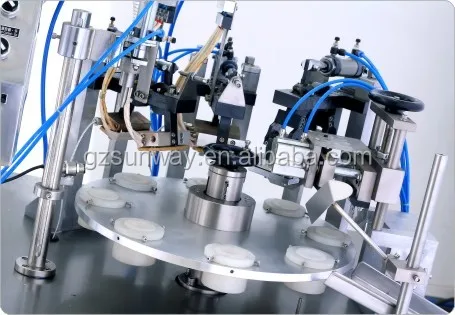

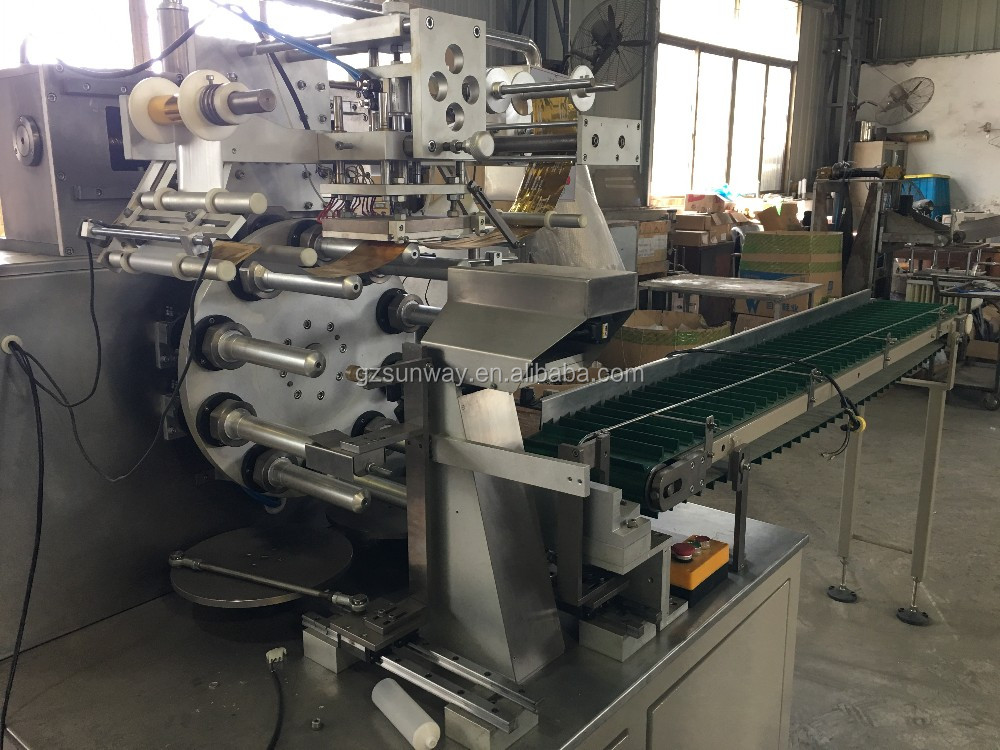

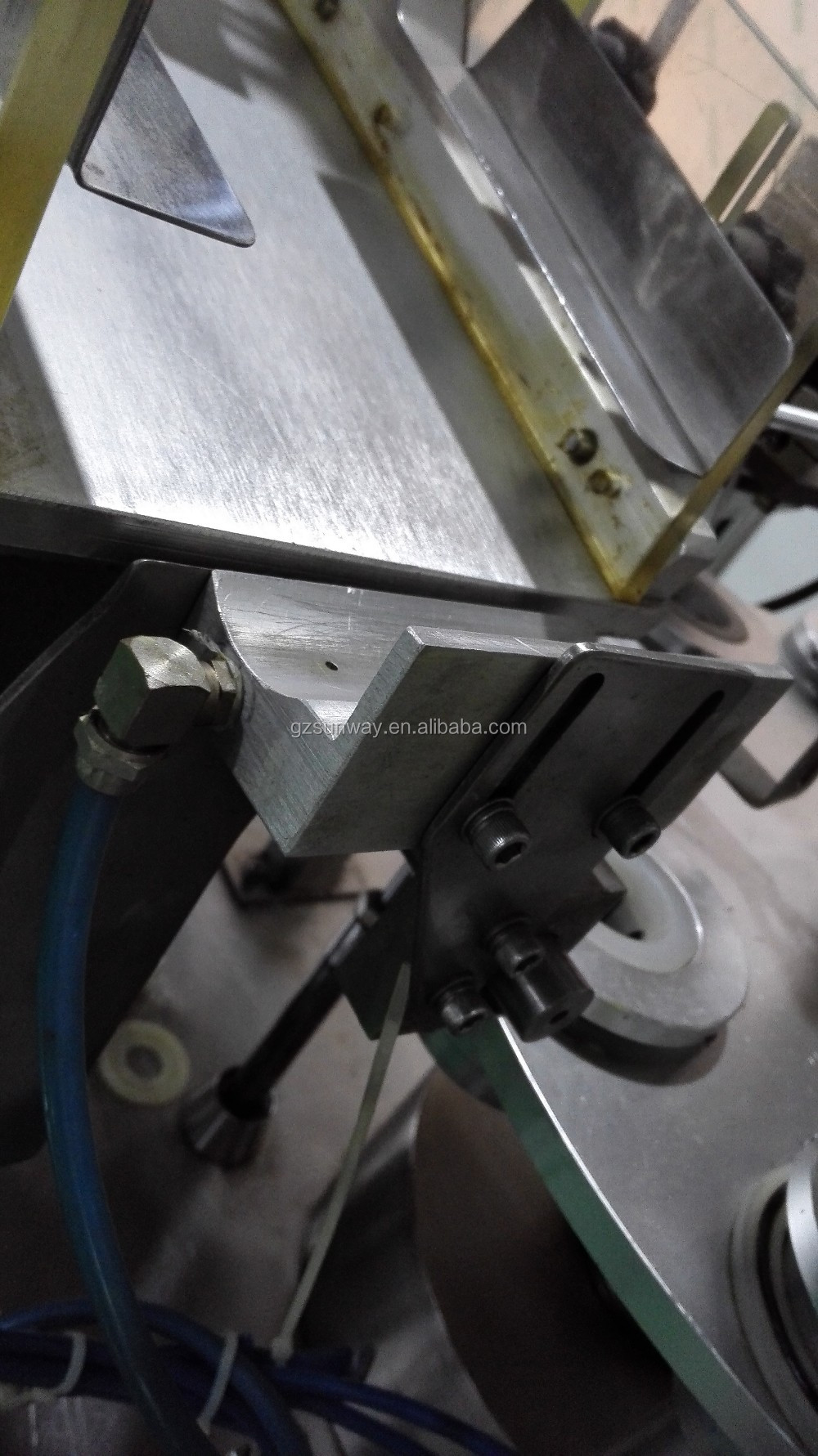

Detailed Images

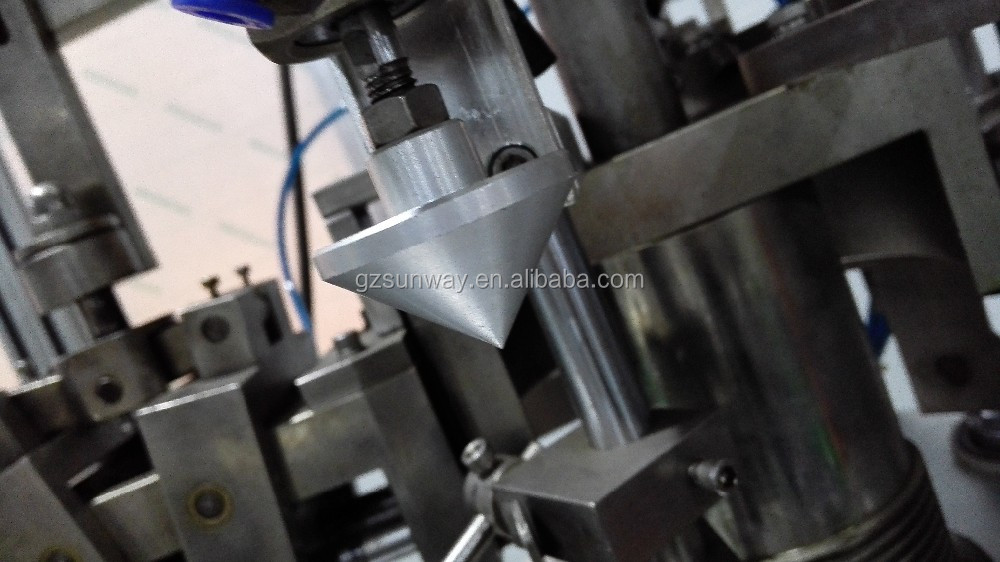

Name: turning device

.

Name: tube pressor


Name: machine mold


For different tube diameter need to change the mold


Our Factory

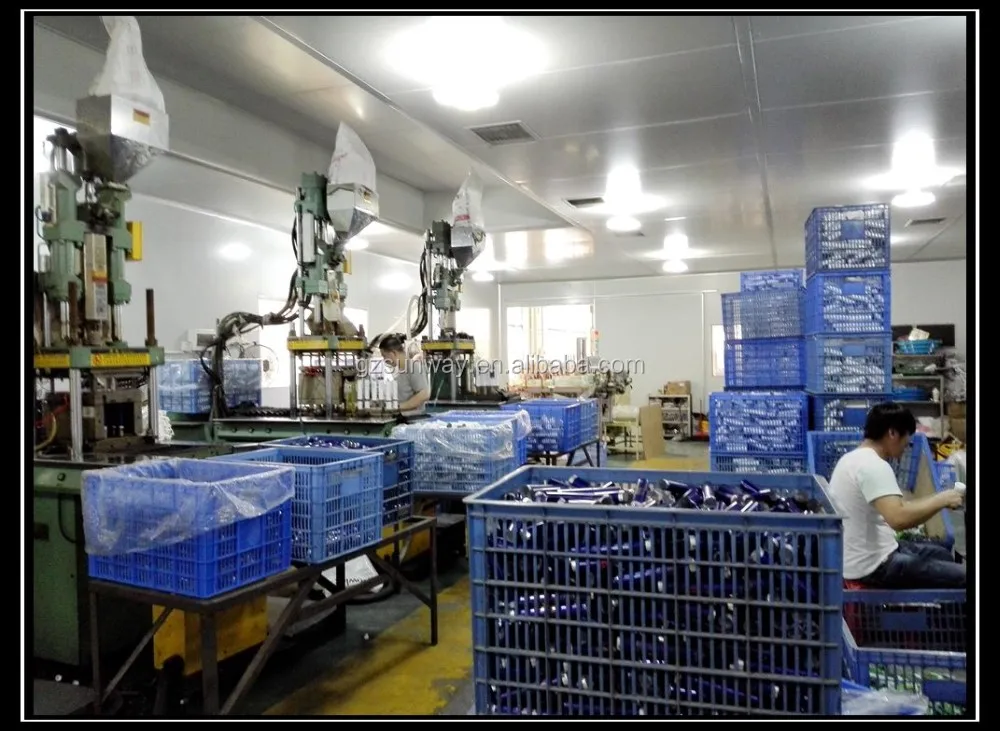

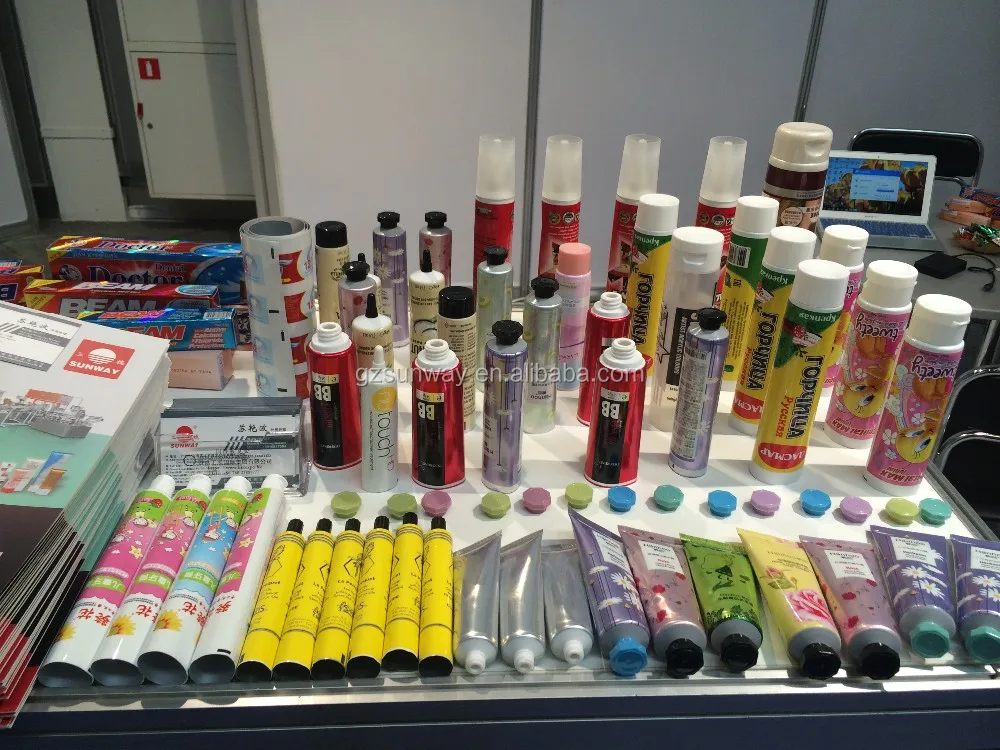

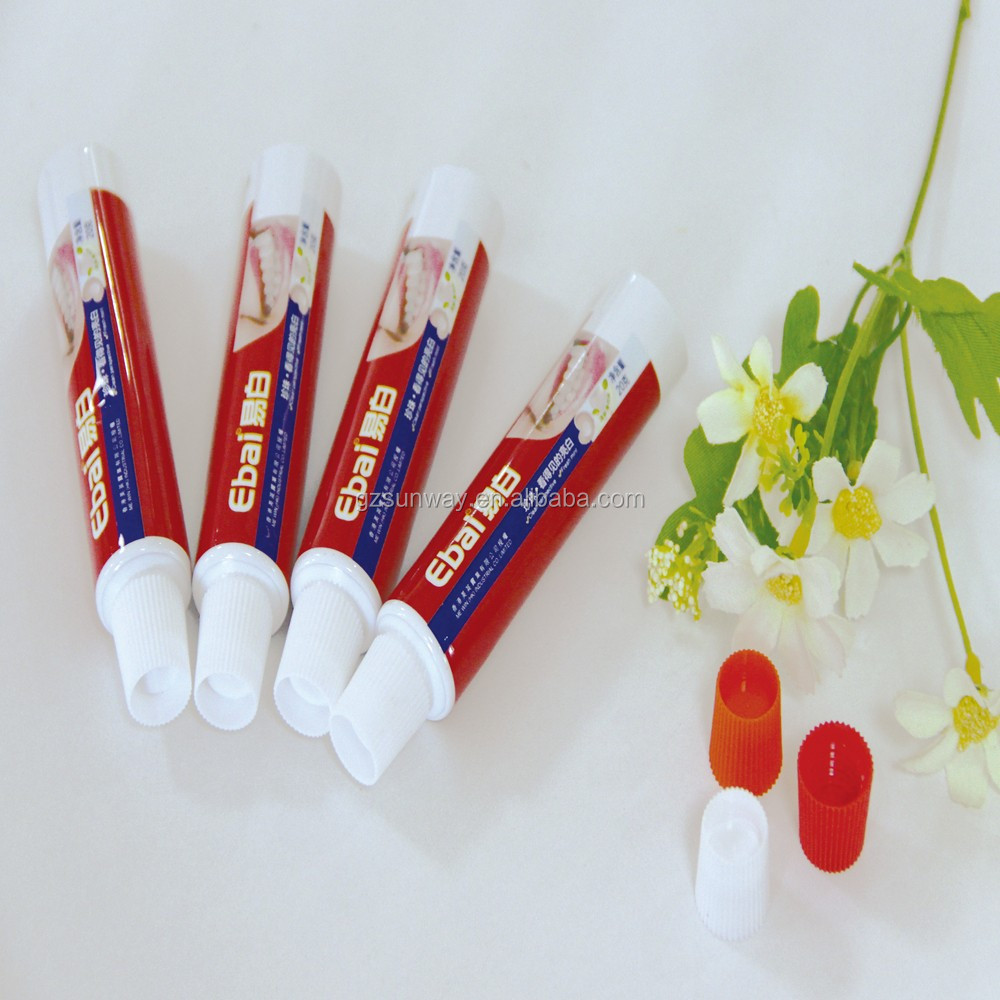

Our tube factory located in Guangzhou for more than 12 years. We offer laminated tube, plastic tube, aluminum tube.

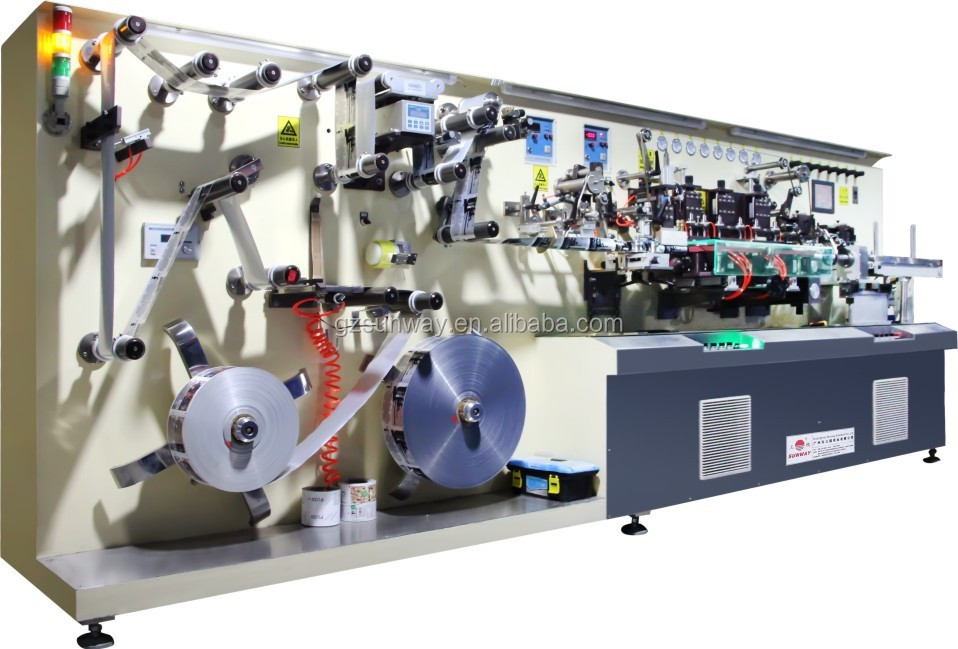

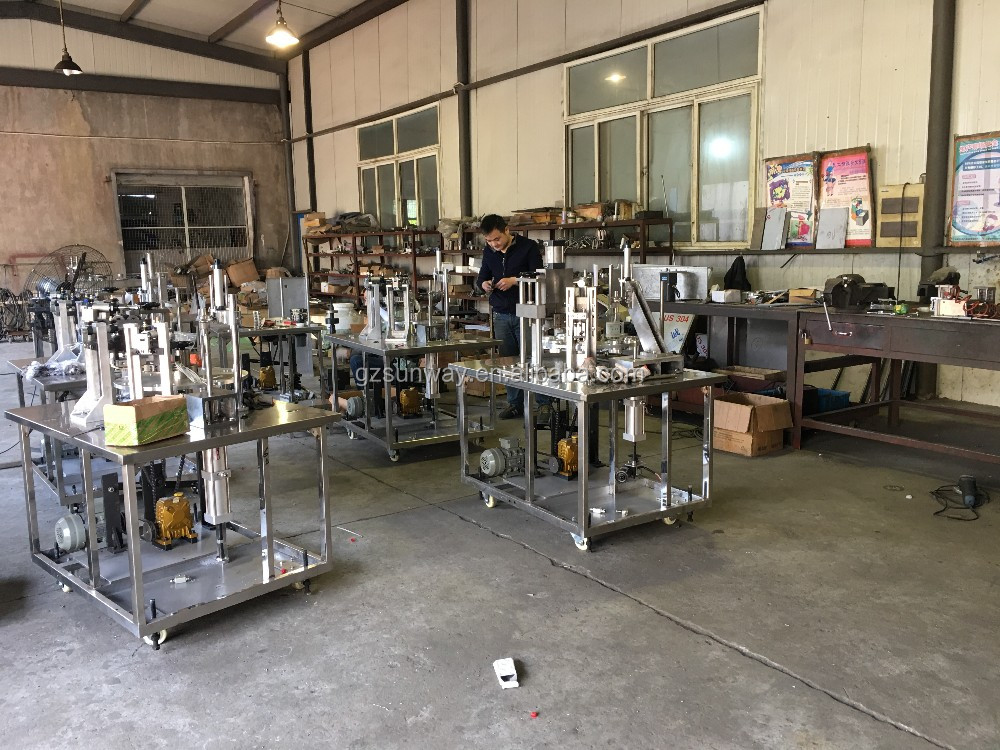

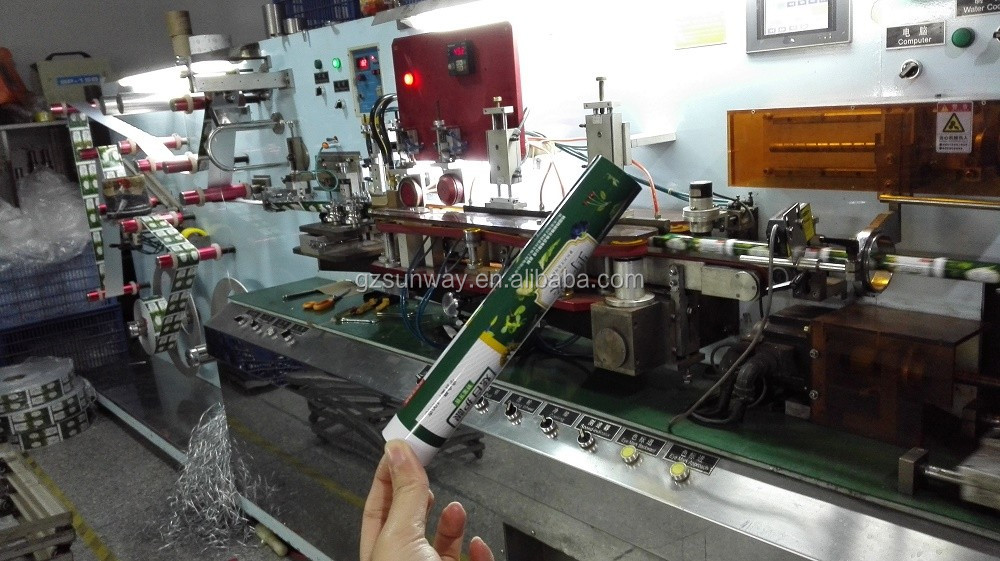

Our machine factory located in Jiang Su province for more than 20 years, we supply the tube production line, toothpaste production line, shampoo production line, cosmetic cream production line, etc.

Certifications

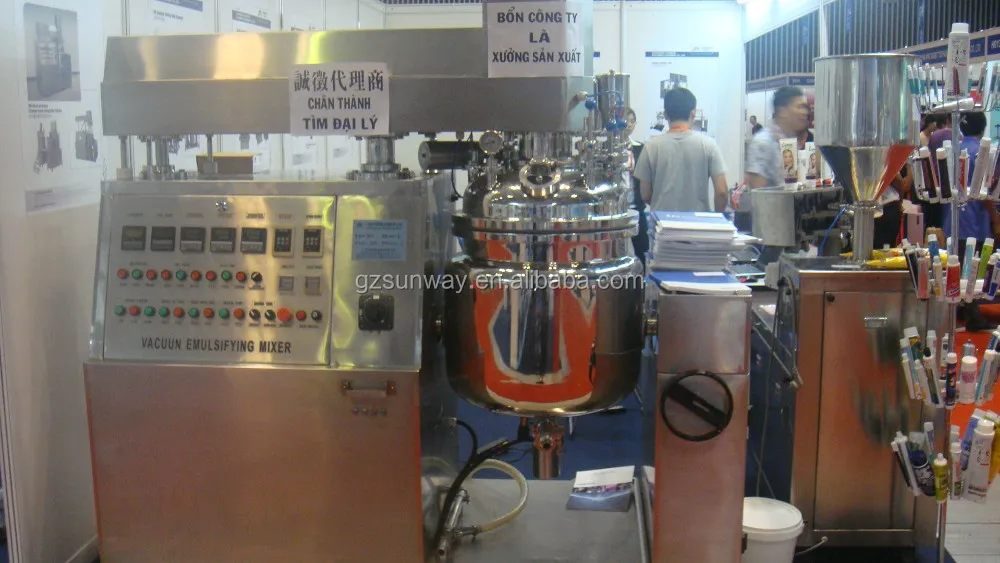

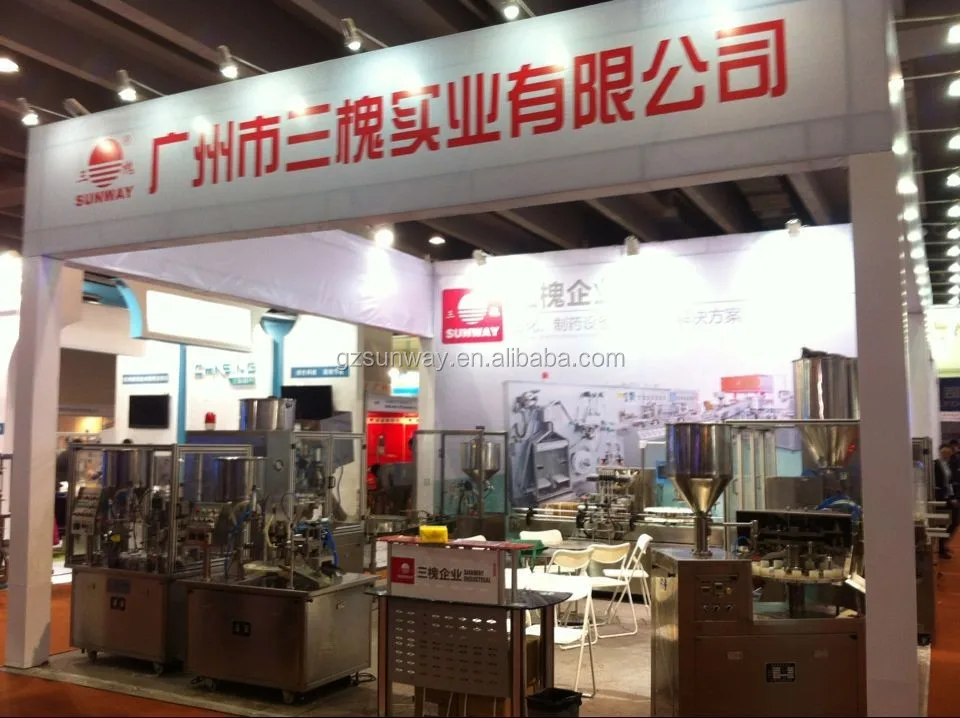

Exhibition Times

Canton Fair




RosUpack Russia




China International Beauty Expo




CHINA MAC FAIR-VIETNAM




Packing & Delivery
Packaging: wooden case(poly wood)
Our Company

With more than 20 years fo accumulation, Sunway Enterprise has become an outstanding manufacturer in the fileds of euiqpments and packaging materials in the fileds of cosmetics, toothpaste , medicine and daily chemical. Our main products include cosmetic whole-set production equipments , toothpaste production lines, tube production lines, soft tubes, packaging materials, plastic injection molds,etc. Sunway has won good reputation in dosmetic and international markets and established its sale company and service networks in Guangzhou and Shanghai, and the products are exported far to Southeast Asia, India, Australia, USA , Russia, Japan, Germany, Brazil, Tunisa, Nigeria, Ghana, Sudan, UK, France, Switzerland and other countries and areas. Especially the automatic tube production line developed in recent years has met the market focus and followed closely the dominant packaging development trend. We have been granted many national patents of invention and received good comment form sutomers at home and abroad.

 With sound hardware facilities, powerful technical R&D and management team, first-class after -sales service .Sunway Enterprise is providing excellent products and service for customers.
